Uni-T UT120C Pocket Digital Multimeter

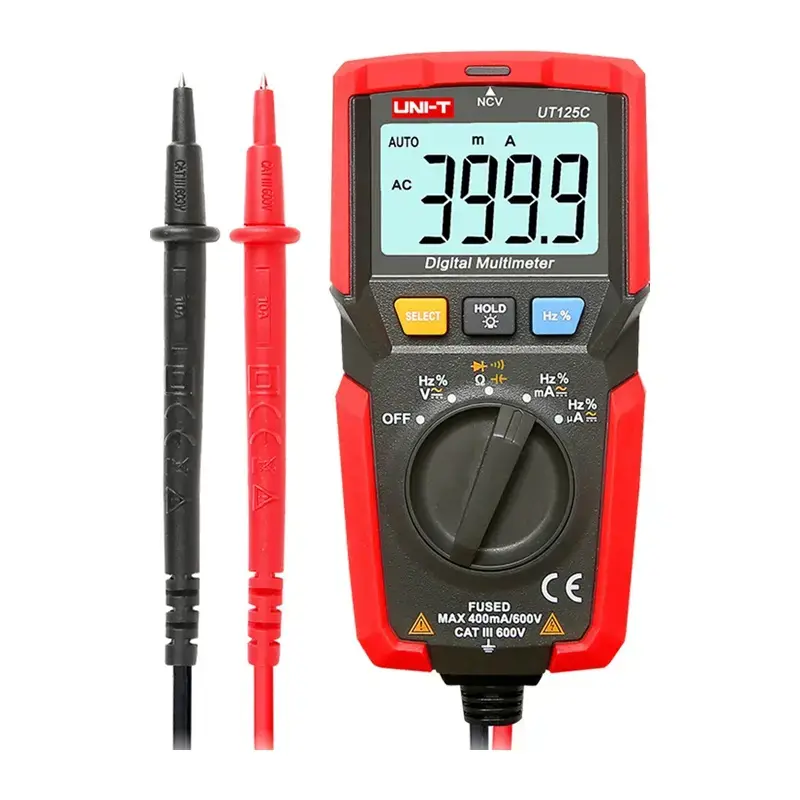

Uni-T UT125C Pocket-Sized Digital Multimeter

The Uni-T UT125C is a pocket-sized digital multimeter that combines compact dimensions, an ergonomic design, and ease of everyday use. The device features a display with a maximum reading of 4000 and is designed for use with low currents below 0.4 A. With the ability to measure voltage and current (AC/DC up to 600 V / 400 mA) and CAT III 600V certification, it is ideal for electronics repair.

Essential measurements in a handy form

The UT125C model allows for the measurement of voltage, current, resistance, capacitance, frequency, and duty cycle, and also offers diode and continuity testing. An additional advantage is the non-contact voltage detection (NCV) function, which makes it convenient to quickly check installations. This set of features makes the meter well-suited for workshop and hobby applications, as well as for the daily diagnosis of simpler electronic circuits.

Ease of use and compact design

The small housing, measuring 112 × 58 × 35 mm and weighing 180 g, makes the multimeter easy to carry and comfortable to use. The device is equipped with a Data Hold function, a low battery indicator, and an auto-off feature, which facilitates daily work and helps save energy. An additional advantage is its resistance to drops from a height of 1 meter, which increases its practicality when used in various conditions.

Included

• Digital multimeter
• Batteries x2
• User manual



Specifications ManufacturerUni-TModelUT125CTypePocket digital multimeterDC Voltage600V ±(0.5%+5)AC Voltage600V ±(1.2%+5)DC current400mA ±(1.8%+5)AC current400mA ±(2%+8)Resistance40MΩ ±(1%+5)Capacitance100µF ±(4%+10)Frequency10Hz~60kHz ±(0.1%+5)Duty cycle20%~80%FunctionsNCV, diode test, continuity test, low battery indicator, Data Hold, auto power offMaximum display reading4000Operating temperature0°C~50°CMeasurement categoryCAT III 600VDrop test1 mPower supply1.5V battery (R03) x2Display dimensions38 mm x 23 mmWeight180 gDimensions112 mm x 58 mm x 35 mmColorRed and grayCertificationsCE, UKCA, cETLus
