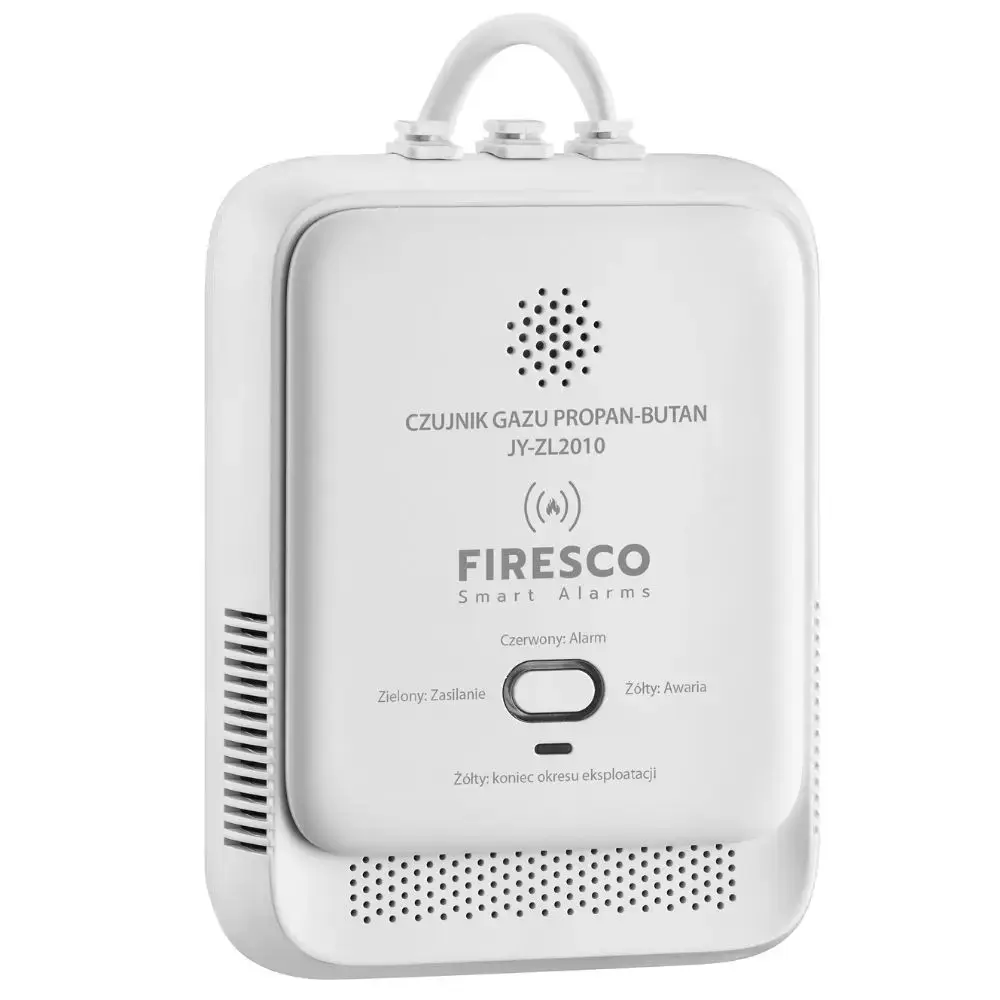

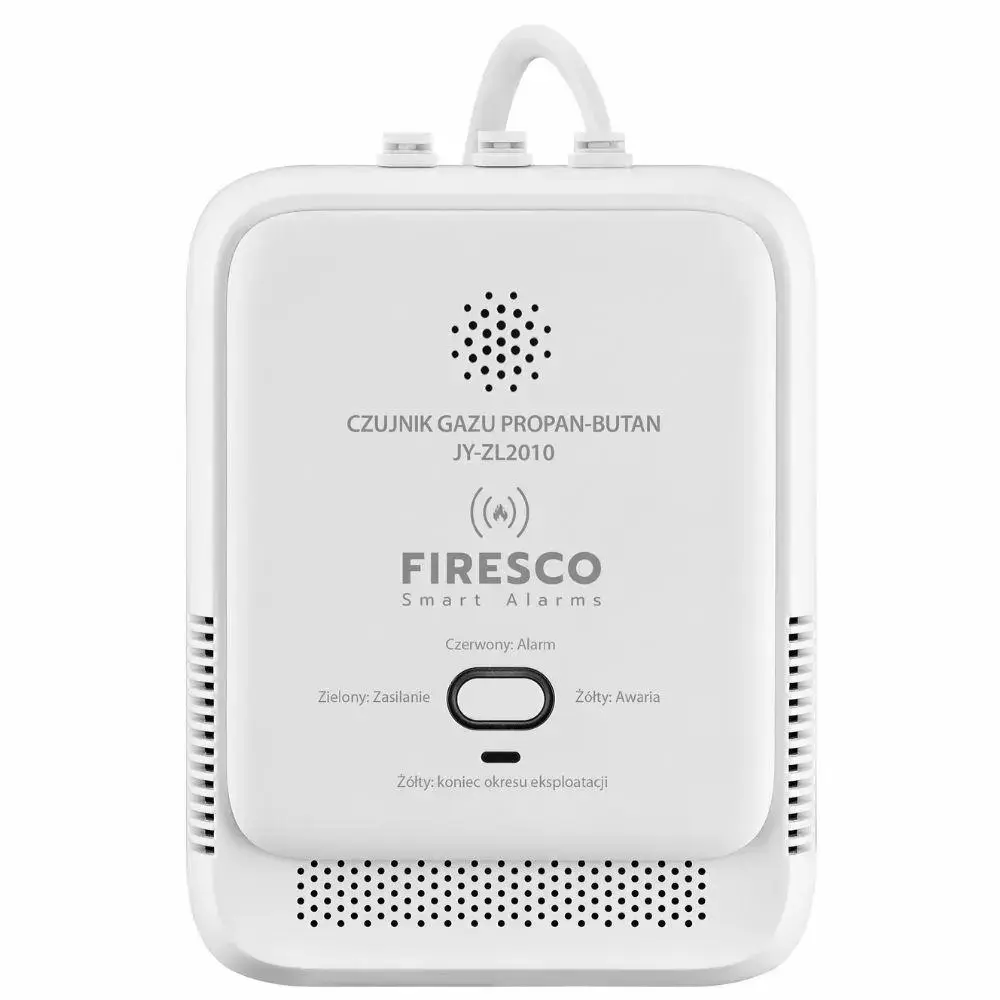

Firesco JY-ZL2010 Propane-Butane (LPG) Gas Sensor

Firesco Propane-Butane Gas Detector JY-ZL2010



Safety and peace of mind in your home

The Firesco JY-ZL2010 detector is a modern device designed to ensure safety in rooms where there is a risk of dangerous gases such as propane (C3H8) or propane-butane mixture (LPG). Thanks to advanced technology and precision operation, this detector enables quick detection of hazards and immediate action.

Top-level accuracy and durability

The Firesco JY-ZL2010 uses a high-quality semiconductor sensor that stands out for its exceptional accuracy and durability. This allows the device to operate reliably for up to 5 years, providing continuous monitoring and protection. Its advanced design ensures the detector will remain effective throughout its service life.

Power supply and constant readiness

The device is powered by 220-240V AC 50/60Hz, and the included 150 cm cable with a European type C plug allows easy connection to a standard socket. The detector is intended for mounting on interior walls of buildings, allowing for convenient placement in the most suitable locations. It should be remembered that it should be installed in rooms with a temperature range of 0°C to +55°C and humidity not exceeding 95% RH.

Immediate response

The detector is calibrated to respond to a gas concentration of ≤7% Lower Explosive Limit (LEL) ±3% LEL for propane, meaning it detects danger at a very early stage before the gas level becomes critical. When a gas leak is detected, the detector immediately activates an optical-acoustic alarm. A loud sound combined with a clear LED light effectively warns of danger, enabling household members and nearby people to react immediately. This solution minimizes the risk of a potential disaster and ensures maximum safety.

Additional features

The Firesco JY-ZL2010 is equipped with an advanced self-diagnostic system that monitors the performance of the sensor and internal circuits. If the device detects any fault, a yellow LED lights up to indicate the issue. This feature significantly increases safety and ensures that the detector always works as intended.

Technical Data



Brand
Firesco


Model
JY-ZL2010


Sensor type
Semiconductor


Sensor lifespan
Up to 5 years


Detected gases
Propane, propane-butane (LPG)


Alarm threshold for propane
≤ 7% LEL ± 3% LEL


Power indication
Green LED lights up


Alarm indication
Optical – flashing red LED

Acoustic – 85 dB siren at 1 m distance


Fault indication
Yellow LED lights up


End-of-life indication
Sound and light


Test button
For device inspection and operation


Included accessories

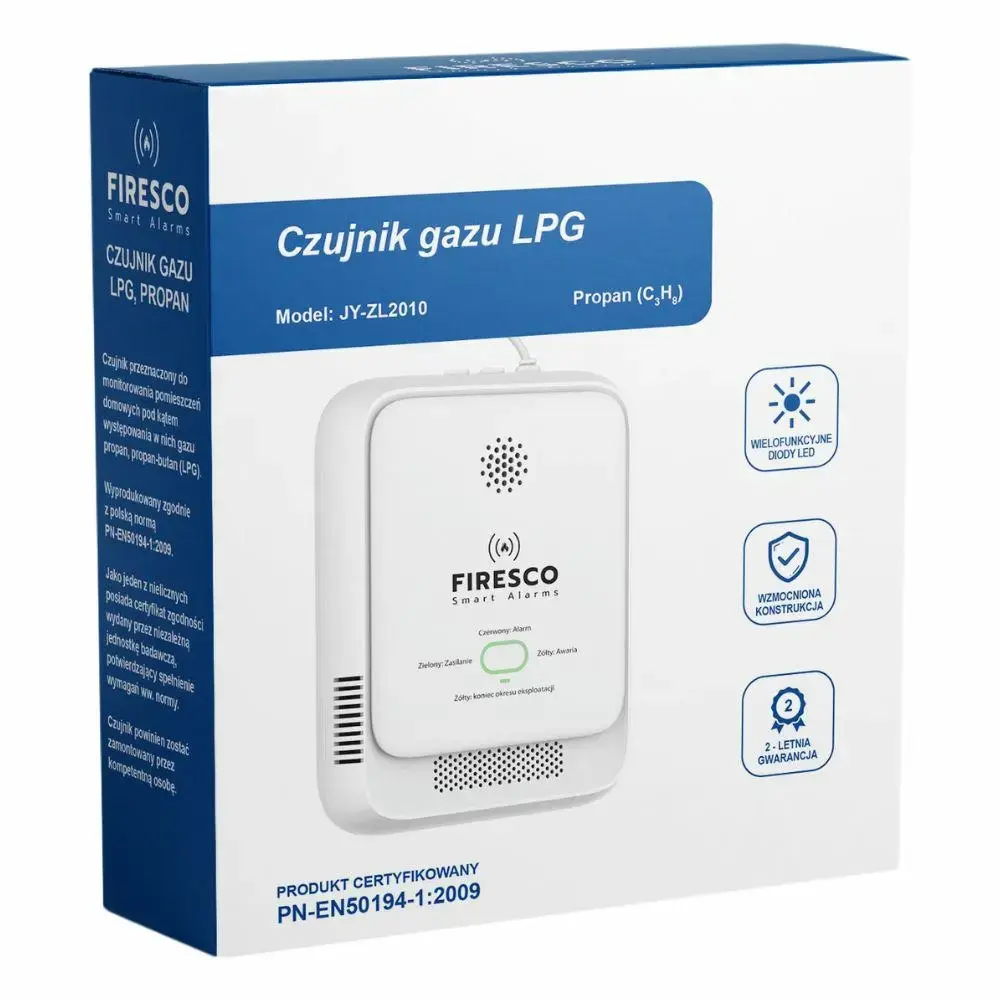

Detector, mounting bracket, mounting plugs, user manual in Polish


Operating conditions
Temperature: 0°C ~ 55°C

Humidity: up to 95% RH, non-condensing


Storage conditions
Temperature: -25°C ~ 55°C

Humidity: up to 95% RH, non-condensing


Input voltage
220-240V AC 50/60Hz


Power consumption: standby/alarm
0.5 W / 4 W


Power cable
1.5 m, European type C plug


Certificates and approvals
PN-EN50194-1:2009, confirmed by an independent, notified testing body CE


Warranty
2 years


Dimensions
112 x 86 x 33.5 mm


Detector weight
196 g
