Uni-T UT336P Wireless Pressure Gauge Kit

Uni-T UT336P Wireless Pressure Gauge Kit

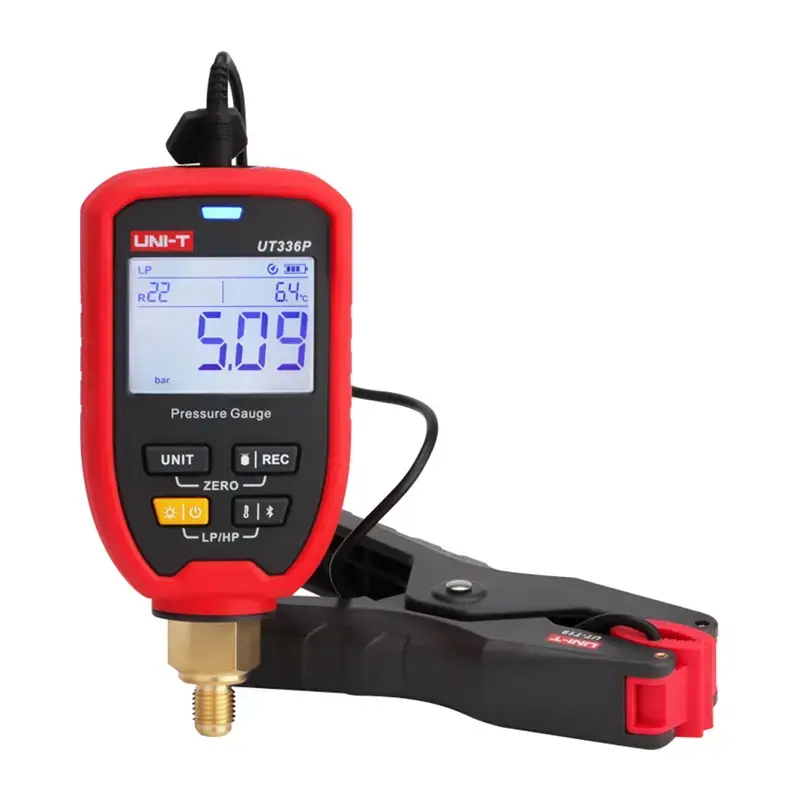

The Uni-T UT336P Kit is a complete solution for working with refrigeration systems and heat pumps. It combines a wireless pressure gauge with a temperature probe, enabling simultaneous measurement of pressure and temperature and more accurate system diagnostics.

System Parameter Measurement and Analysis

The UT336P Kit offers a wide pressure measurement range in multiple units and temperature measurement from -50°C to 150°C. Connecting to the mobile app via Bluetooth allows for real-time data monitoring and analysis of parameters such as superheat and subcooling.

Features to make your work easier

The device allows you to store up to 8,000 measurements and set a logging interval, which is useful for long-term monitoring. High and low pressure alarms, a backlit screen, and the ability to work offline enhance user convenience.

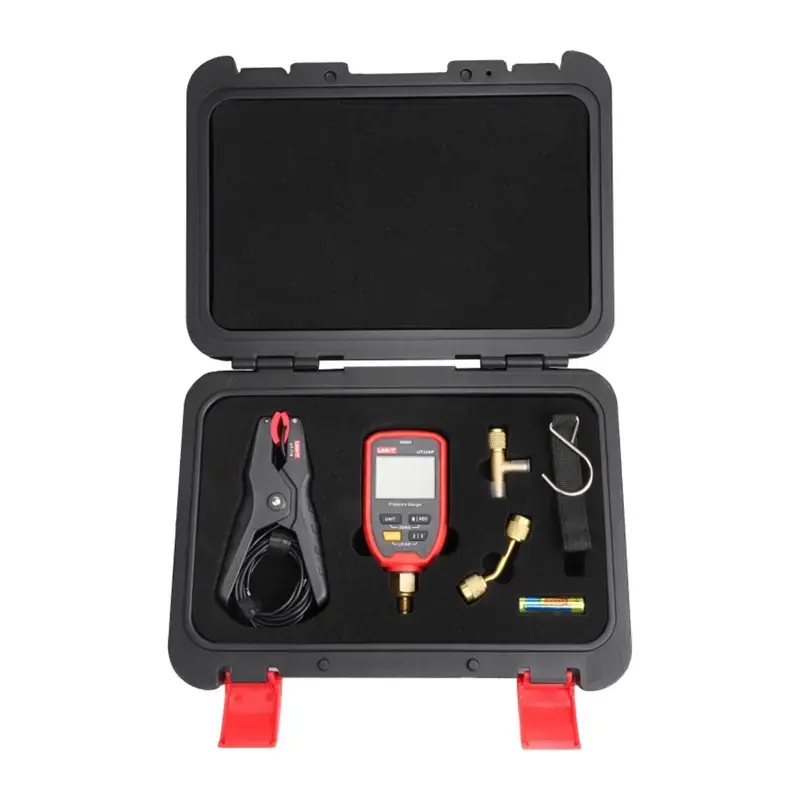

Included in the kit

• Wireless pressure gauge
• Temperature probe
• 3 AA batteries
• Wrist strap
• Wrist strap
• Tool kit
• 1/4" SAE tee
• 1/4" SAE elbow
• User manual
• Download guide



Specifications ManufacturerUni-TModelUT336P KitTypeWireless pressure gauge with temperature probePressure range-1 ~ 60 bar ±0.5% FSTemperature range-50°C ~ 150°C ±(0.5°C / 1°C)Pressure unitsbar, kg/cm², cmHg, psi, inHg, kPa, MPaTemperature units°C / °FData log8,000 measurementsRecording interval1 s ~ 1 hConnectivityBluetoothSupported media10 in the device / 90+ in the appFeaturesData Hold, data logging, high and low pressure alarms, LCD backlight, pressure zeroing, auto power offTemperature port3.5 mmConnection1/4" SAEProtection ratingIP54Power supply3x AA batteriesDimensions145 x 68 x 39 mmWeight250 gCertificationsCE, RoHS
