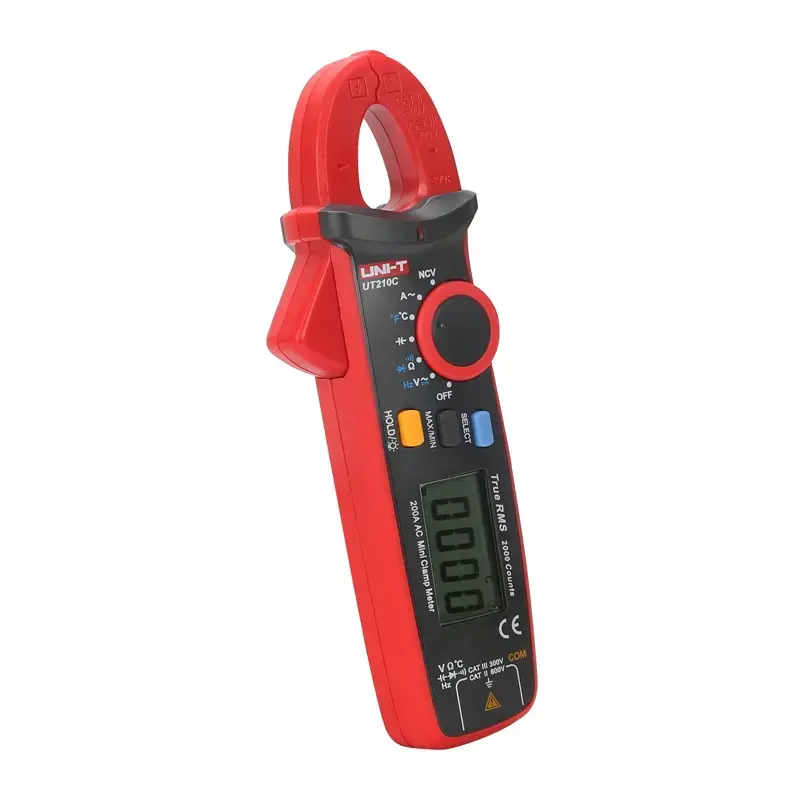

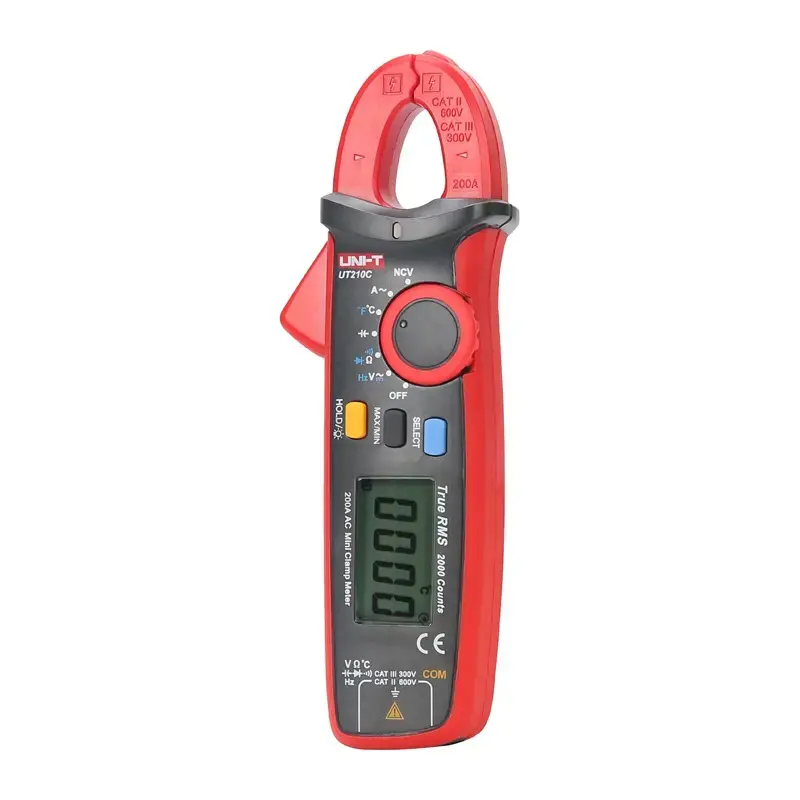

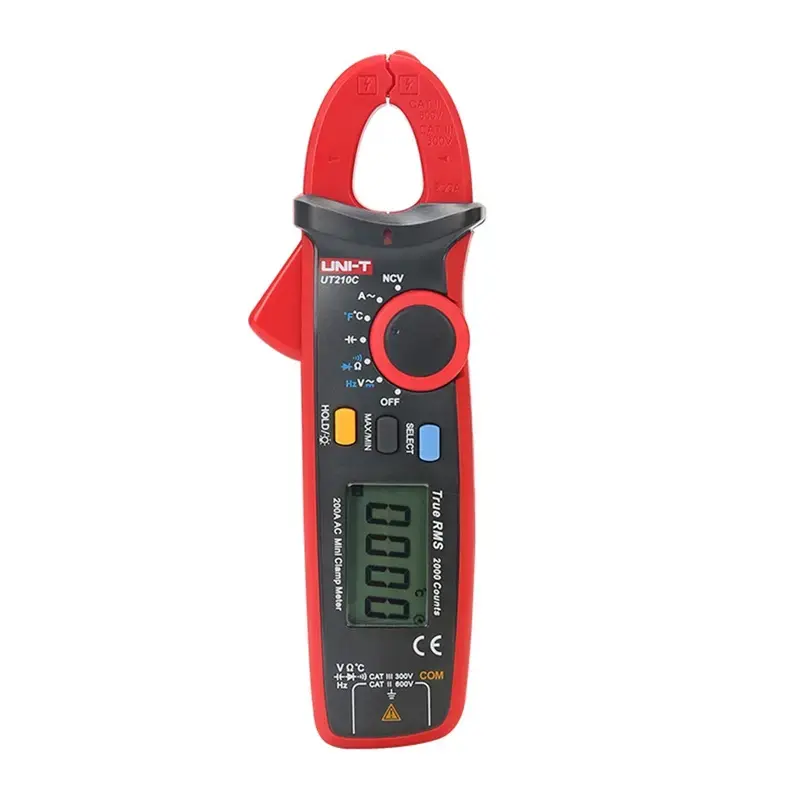

Uni-T UT210C Mini Digital Clamp Meter

Uni-T UT210C Mini Digital Clamp Meter

The Uni-T UT210C Mini Digital Clamp Meter is a compact tool designed for use in hard-to-reach areas. Thanks to its small size and lightweight design, it is ideal for servicing equipment, home installations, and electrical work requiring mobility.

Extended measurement capabilities

The UT210C model allows for measuring AC current up to 200A and AC/DC voltage up to 600V. Additionally, it offers resistance, capacitance, and temperature measurement, which expands its diagnostic applications.

Features that make work easier

Automatic range switching and functions such as diode test, continuity test, and Data Hold streamline daily work and speed up measurements.

Lightweight design and ease of use

The compact housing and 17 mm jaw opening allow for work in tight spaces. The low weight enhances user comfort.

Included in the set

• Clamp meter
• Batteries x2
• Test leads
• Temperature probe
• Carrying case
• User manual



Specifications ManufacturerUni-TModelUT210CTypeMini clamp meterAC current200A ±(2%+10)AC voltage600V ±(1%+3)DC voltage600V ±(0.7%+3)Resistance20MΩ ±(1%+2)Capacitance20mF ±(4%+5)Temperature-40°C ~ 1000°C ±(1%+3)Maximum reading2000FunctionsCircuit continuity buzzer, diode test, automatic range switching, Data Hold, backlight, auto power offJaw opening17 mmPower supply2x 1.5V battery (R03)Display39.3 x 26.5 mmDimensions175 x 60 x 33.5 mmWeight170 gCertificationsCE, UKCA, cETLus
