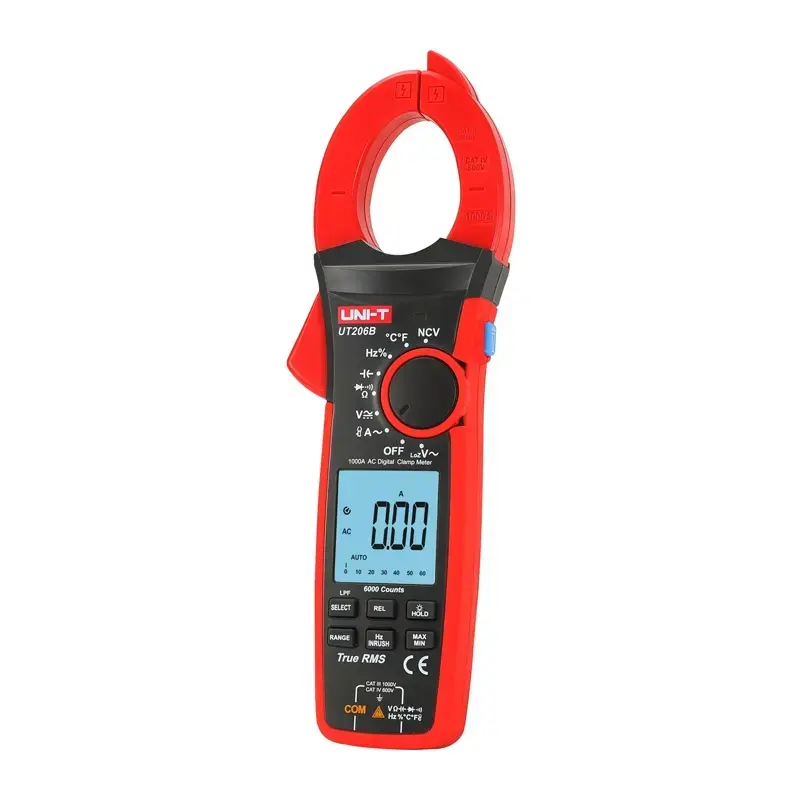

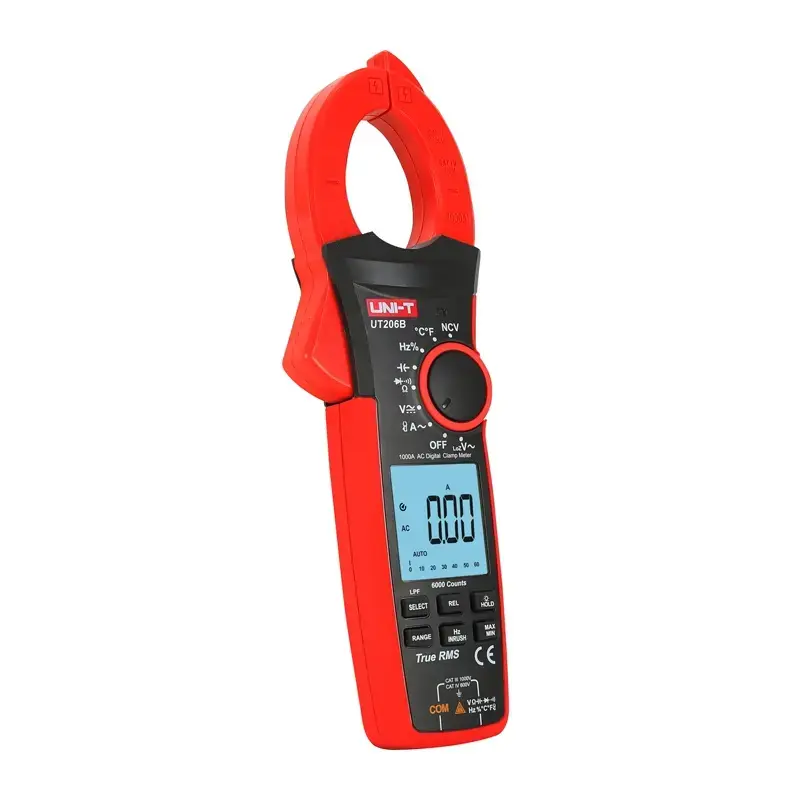

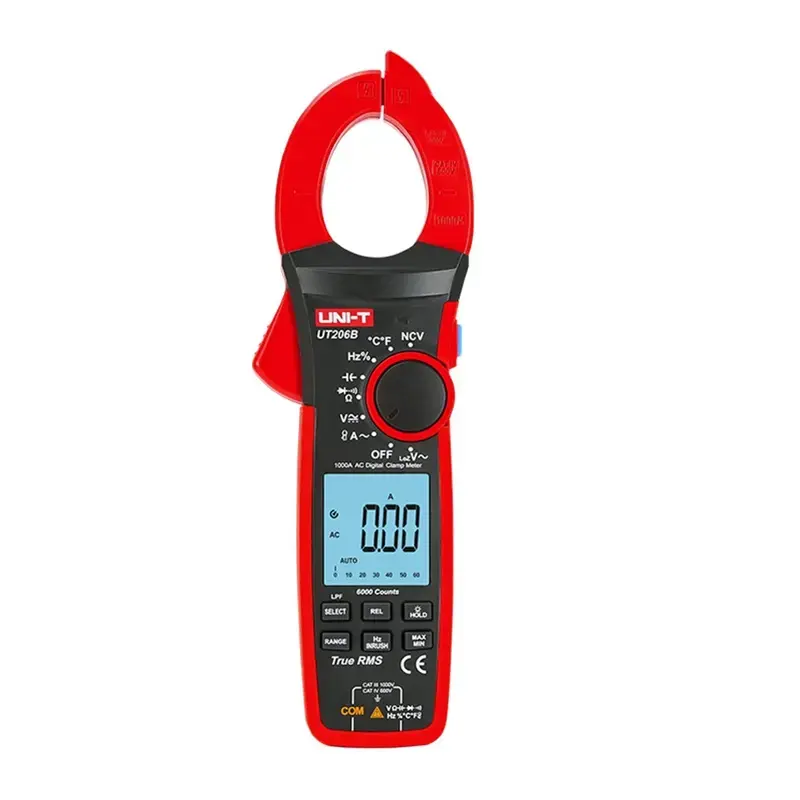

Uni-T UT206B Digital Clamp Meter

Uni-T UT206B Digital Clamp Meter

The Uni-T UT206B digital clamp meter is a versatile tool for working with electrical installations and diagnosing equipment. Thanks to its clamp design, it allows for quick current measurement without opening the circuit, which significantly facilitates work in the field and at switchgear.

Extended measurement capabilities

The UT206B model measures AC current up to 1000A and AC/DC voltage up to 1000V, and additionally offers temperature and inrush current measurement. The LoZ and LPF functions provide more accurate results in industrial installations.

Features that make work easier

True RMS, NCV, inrush mode, and a low-pass filter increase measurement accuracy. The ability to connect a Flex probe allows the current measurement range to be extended up to 3000A.

Intuitive design and safety

A large display with a bar graph and a 42 mm jaw opening make work easier. The device complies with CAT III 1000V / CAT IV 600V standards.

Included

• Clamp meter
• Batteries x3
• Test leads
• Temperature probe
• User manual



Specifications ManufacturerUni-TModelUT206BTypeTrue RMS clamp meterAC current1000A ±(2%+5)Inrush current1000A ±(10%+10)AC voltage1000V ±(1.2%+3)DC voltage1000V ±(0.5%+5)LPF ACV1000V ±(2%+5)LoZ ACV1000V ±(2%+5)AC voltage range40Hz ~ 400HzResistance60MΩ ±(1%+2)Capacitance60mF ±(4%+5)Temperature-40°C ~ 1000°C ±(1%+2)Frequency10Hz ~ 1MHz ±(0.1%+3)Duty cycle10% ~ 90% ±(2.6%+7)Maximum reading6000FunctionsTrue RMS, NCV, LPF, LoZ, inrush current measurement, bargraph, Flex probe capabilityJaw opening42 mmPower supply3x 1.5V battery (R03)Display43 x 45 mmDimensions272 x 81 x 43.5 mmWeight465 gSafetyCAT III 1000V / CAT IV 600VCertificationsCE, UKCA, cETLus
