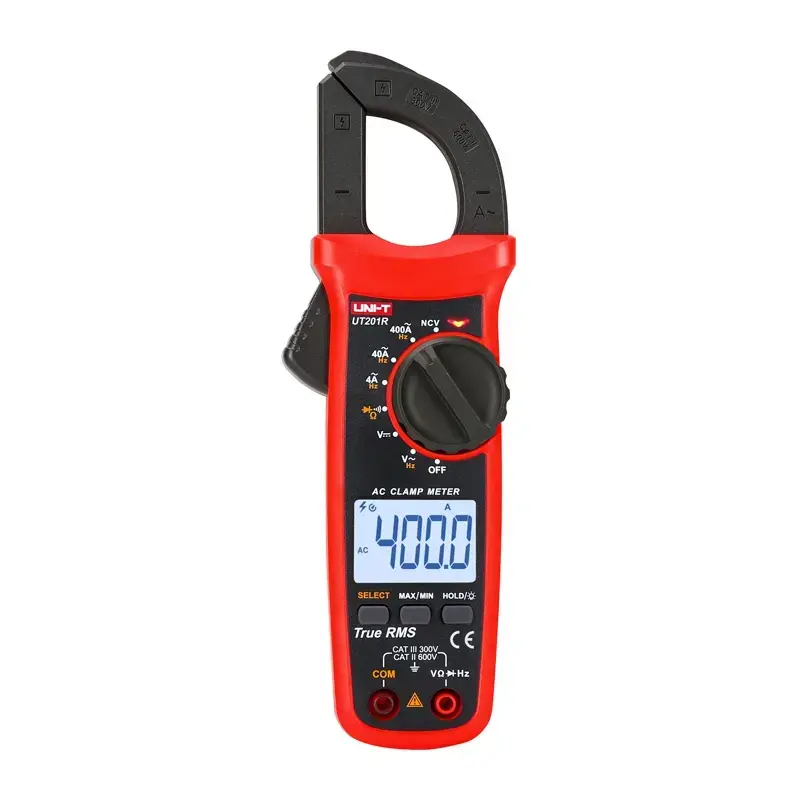

Uni-T UT201R Digital Clamp Meter

Uni-T UT201R Digital Clamp Meter

The Uni-T UT201R universal clamp meter is a practical tool for everyday electrical measurements. It is ideal for inspecting installations, diagnosing basic circuits, and measuring AC current without having to open the circuit. Thanks to its clamp design, it allows for convenient and quick measurements in the field.

Basic measurements for everyday work

The UT201R model allows for measuring AC current up to 400 A and AC and DC voltage up to 600 V, making it well-suited for typical service and inspection tasks. Resistance and voltage frequency measurements further enhance its practical application when checking circuits and devices.

User-friendly features

The multimeter is equipped with True RMS, which provides more reliable results when measuring alternating signals. Features such as NCV, diode test, continuity test, Data Hold, Max/Min, and auto-off simplify daily work and enhance user convenience.

Clear design and safe operation

The large backlit screen makes it easy to read results, and the 28 mm jaw opening allows for a comfortable grip on the wire during measurement. Compliance with safety categories CAT II 600V and CAT III 300V allows the device to be used in typical electrical applications.

Included

• Clamp meter
• Batteries x2
• Test leads
• User manual



Specifications ManufacturerUni-TModelUT201RTypeClamp meterAC current0.04~400A ±(2%+10)AC frequency50Hz~100Hz ±(1%+5)AC voltage600V ±(0.8%+5)AC voltage frequency10Hz~10kHz ±(1%+5)DC voltage600V ±(0.5%+2)Resistance40MΩMaximum reading4000FunctionsTrue RMS, NCV, diode test, continuity test, Data Hold, Max/Min, auto power off, LCD backlightJaw opening28 mmPower supply2x 1.5V battery (R03)SafetyCAT II 600V / CAT III 300VDimensions215 x 63 x 36 mmCertificationsCE, UKCA, cETLus
