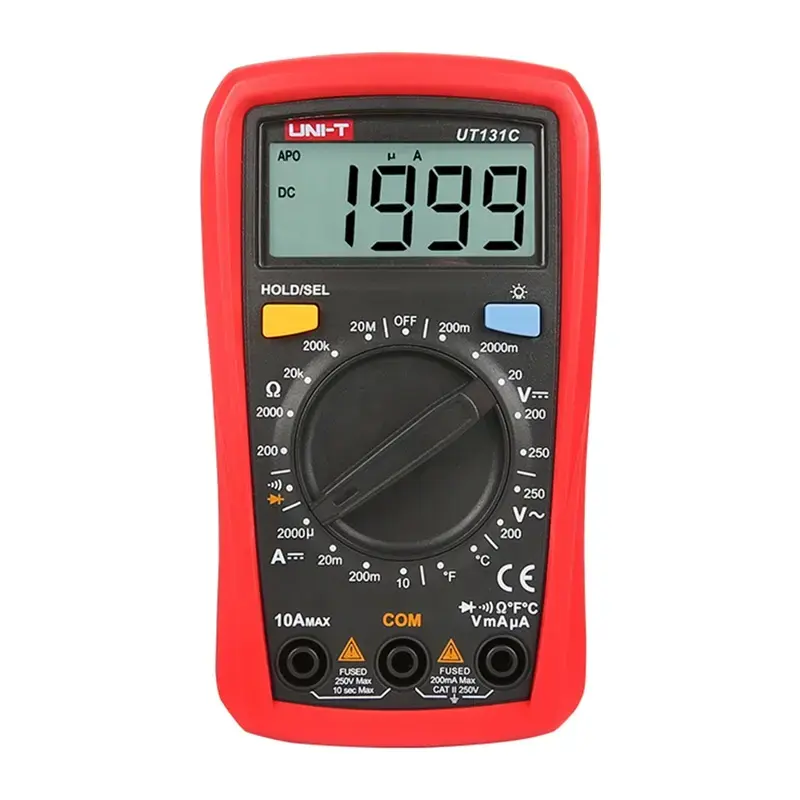

Uni-T Palm-Sized UT131C Digital Multimeter

Uni-T Palm Size UT131C Digital Multimeter

The Uni-T UT131C is a compact digital multimeter from the UT131 series, designed for convenient and basic measurements in everyday use. The series features a clear LCD display, an ergonomic housing with a protective cover, and a practical test lead holder. Drop resistance from heights of up to 2 meters increases the device’s durability and allows for greater confidence in its use.

Additional temperature measurement function

The UT131C model allows for the measurement of DC voltage up to 250 V, AC voltage up to 250 V, DC current up to 10 A, and resistance up to 20 MΩ. A distinguishing feature of this model is its temperature measurement function, which covers a range from -40°C to 1000°C and from -40°F to 1832°F, making it more versatile for a wider range of applications. Manual range selection allows you to more precisely adjust the device’s operation to the specific measurement task.

A convenient tool for everyday tasks

The device is equipped with a diode test, continuity test, Data Hold function, auto-off, and LCD backlight. A maximum reading of 2000 and a loud buzzer improve the comfort of daily use. Thanks to its CAT II 250V safety rating, the UT131C is suitable for basic measurement tasks, and the included thermocouple allows you to measure temperature right away.

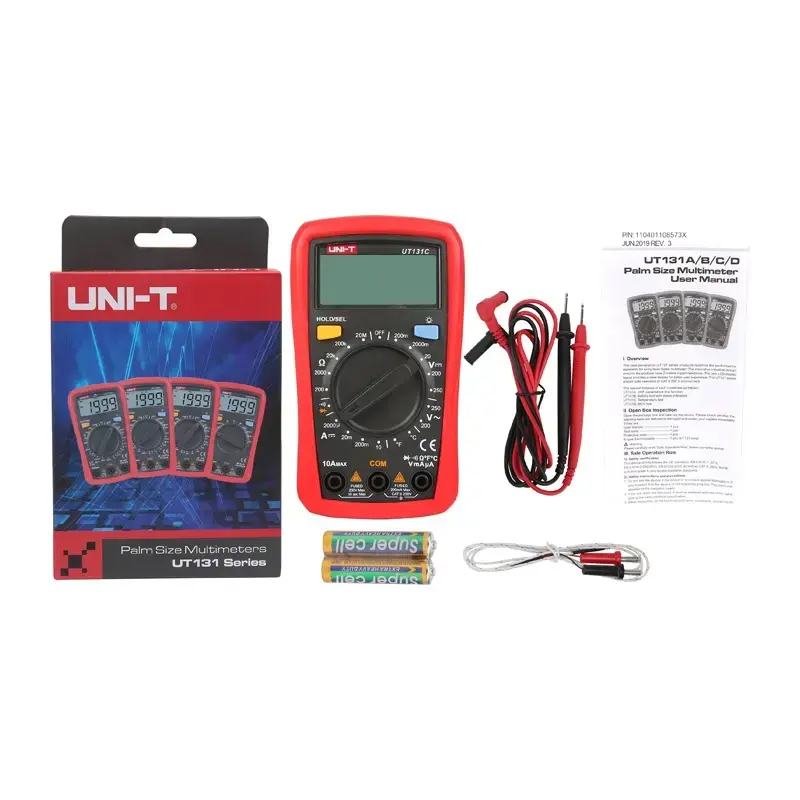

Included

• Digital multimeter
• Test leads
• Thermocouple
• User manual



Specifications ManufacturerUni-TModelUT131CTypePocket digital multimeterDC voltage200mV / 2000mV / 20V / 200V / 250V ±(0.5%+2)AC voltage200V / 250V ±(1.2%+3)DC Current200mA / 10A ±(1.0%+2)Resistance200Ω / 2kΩ / 20kΩ / 200kΩ / 20MΩ ±(0.8%+2)Temperature °C-40°C~1000°C ±(1.0%+3)Temperature °F-40°F~1832°F ±(1.5%+5)Maximum reading2000Range switchingManualFunctionsDiode test, continuity test, Data Hold, auto power off, LCD backlightSafetyCAT II 250VDrop test2 mPower supply2x 1.5V battery (R03)Weight206 gDimensions134 mm x 77 mm x 47 mmDisplay dimensions66 mm x 51 mmColorRed and grayCertificationsCE, UKCA, cETLus
